Manufacturer: General

Product code : CGRHSCAR6039810

Description

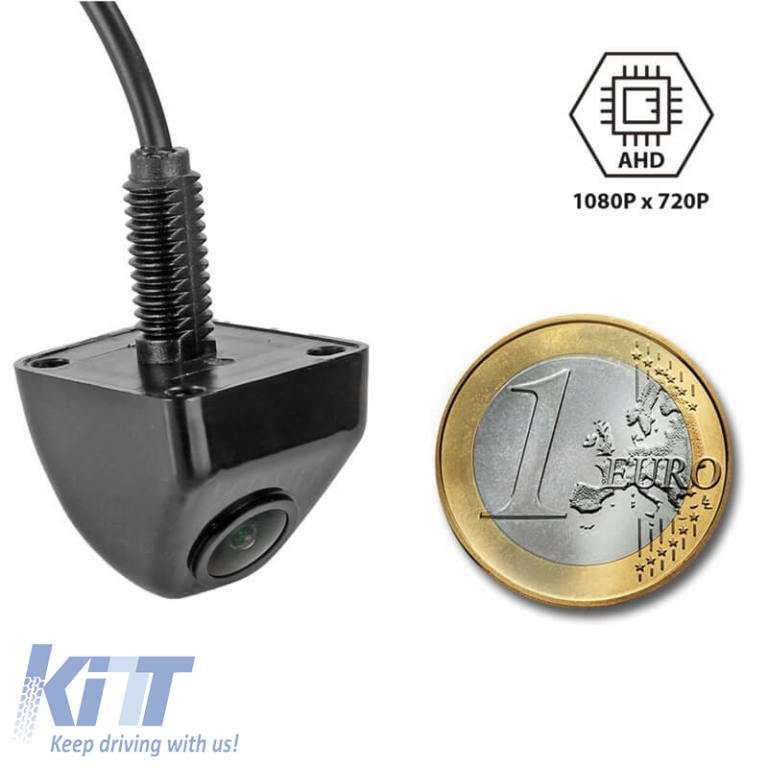

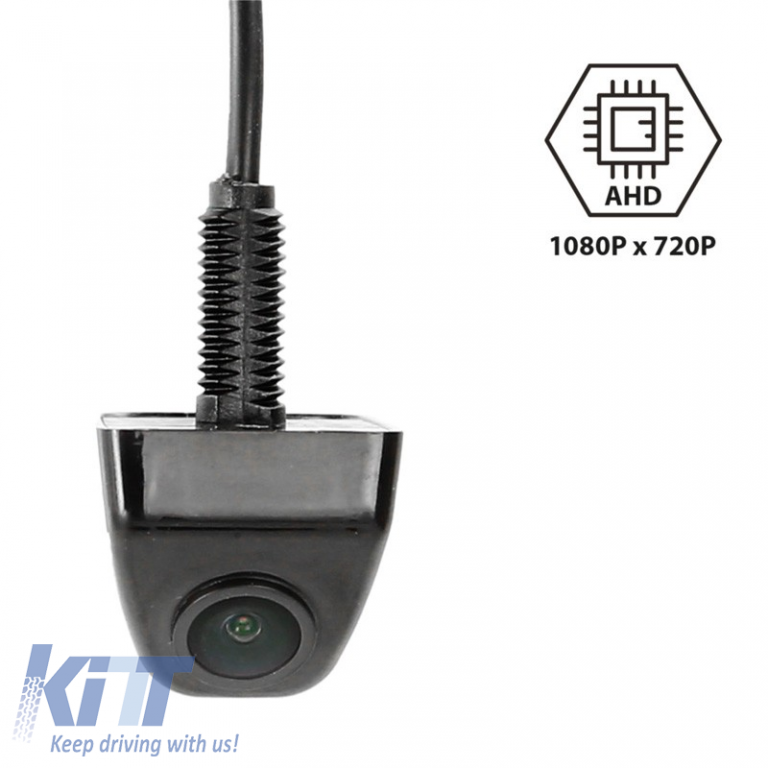

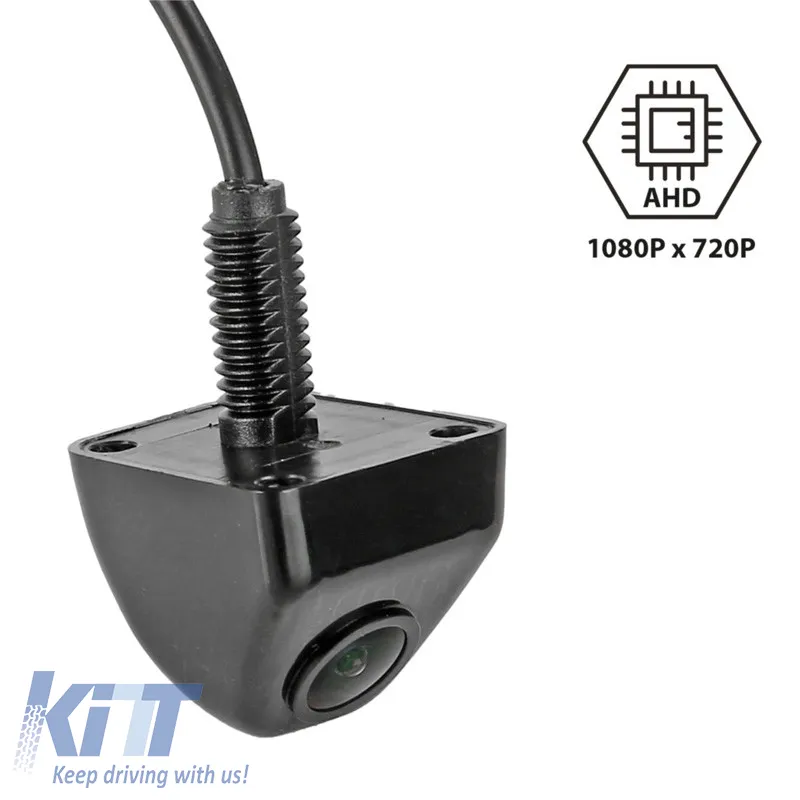

Universal Reverse Car Van Truck AHD With IP69K Waterproof Camera 170° Sub Construction Mount ACV 772000-6708
Characteristics:

• only suitable for AHD monitors
• AHD universal rear view camera
• Design: square
• Mounting type: substructure
• With small design / IP69K / Viewing angle diagonal 210°
• Construction: plastic
• Color: black
• Extras: small design / IP69K
• Sensor type: 1/2.8" AHD
• Image system: NTSC color
• Lens: mm / F
• Lux: 0.03
• Resolution: TV lines
• Lens angle: diagonal 210°
• Viewing angle: horizontal 170° vertical 120° +5°
• Dust and water resistant: IP69K
• Connection: 4 pin acv system plug(m) Ø5.2mm
• Operating voltage: +3V DC
• Supply voltage: +12V / +24V DC > with voltage converter
• Current consumption: 100mA
• Operating temperature range: -20°C - 70°C
• Storage temperature: -40°C - 80°C
• Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm

Note:

• acv cameras are suitable for continuous operation
• Before installation > check the viewing angle and camera alignment at the installation location using a test monitor
• Camera operating voltage: +3V
• Camera supply voltage: +12V / +24V
• Connection without the +3V voltage converter included in delivery will damage the camera
• Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND
• Cinch(m) yellow: video

Product Info
Color: Black
Including: Double Side Tape

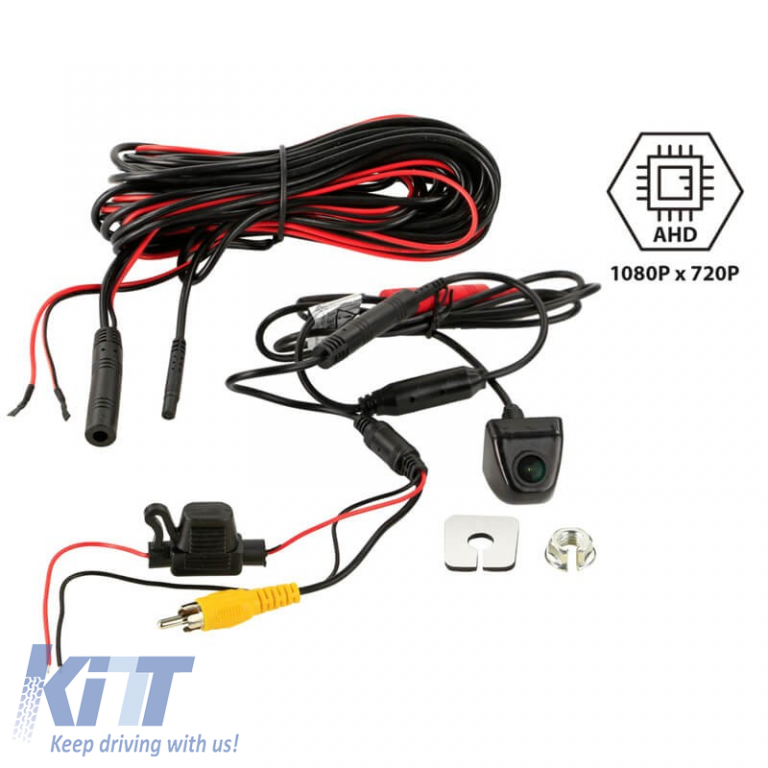

Including: Wiring Kit
Number of Pieces: 1 Piece
Position: Rear
Universal | Universal | Universal

Image system: NTSC color

Lens: mm / F

Lux: 0.03

Resolution: TV lines

Lens angle: diagonal 210°

Viewing angle: horizontal 170° vertical 120° +5°

Dust and water resistant: IP69K

Connection: 4 pin acv system plug(m) Ø5.2mm

Operating voltage: +3V DC

Supply voltage: +12V / +24V DC > with voltage converter

Current consumption: 100mA

Operating temperature range: -20°C - 70°C

Storage temperature: -40°C - 80°C

Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm

Note:

• acv cameras are suitable for continuous operation
• Before installation > check the viewing angle and camera alignment at the installation location using a test monitor
• Camera operating voltage: +3V
• Camera supply voltage: +12V / +24V
• Connection without the +3V voltage converter included in delivery will damage the camera
• Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND
• Cinch(m) yellow: video

Product Info
Color: Black
Including: Double Side Tape
Including: Wiring Kit
Number of Pieces: 1 Piece
Position: Rear
Universal | Universal | Universal">
