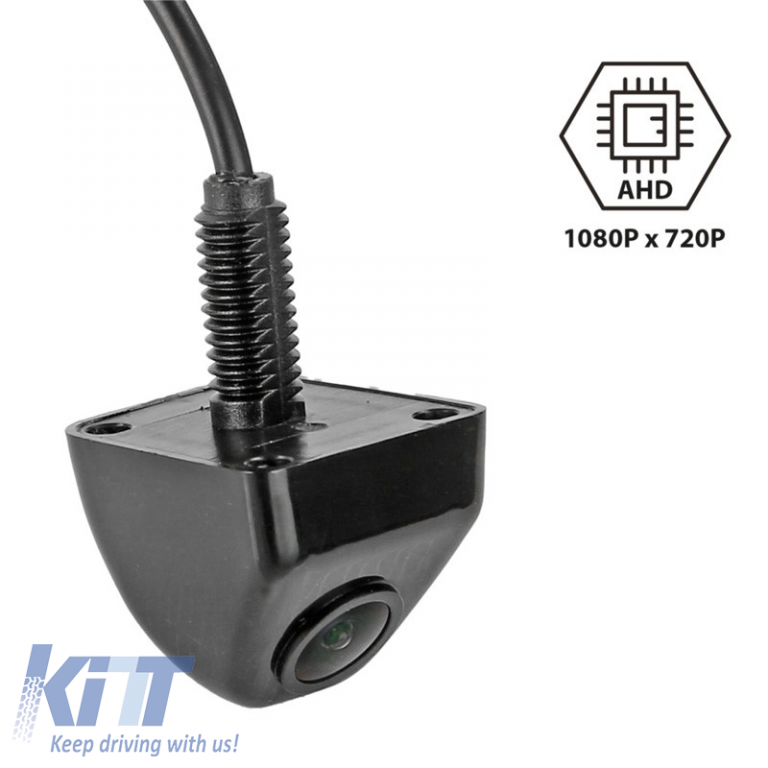

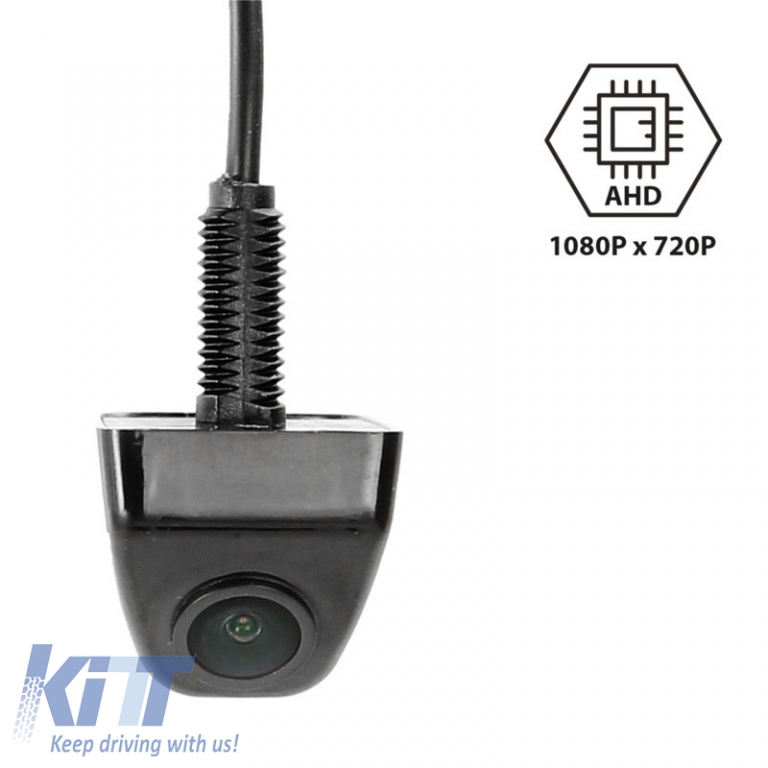

Universal Reverse Car Van Truck AHD With IP69K Waterproof Camera 170° Sub Construction Mount ACV 772000-6708 Characteristics:

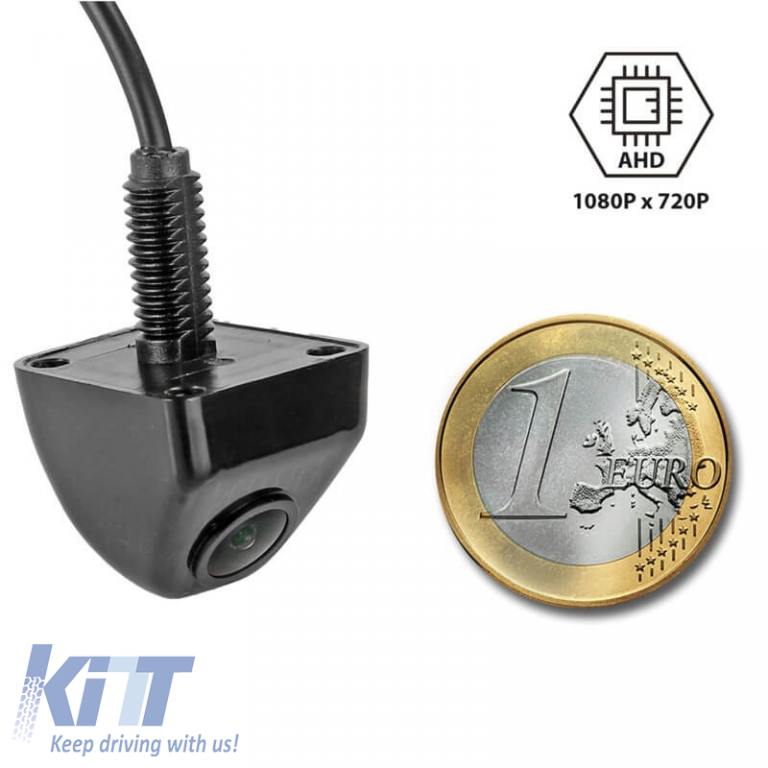

only suitable for AHD monitors AHD universal rear view camera Design: square Mounting type: substructure With small design / IP69K / Viewing angle diagonal 210° Construction: plastic Color: black Extras: small design / IP69K Sensor type: 1/2.8" AHD Image system: NTSC color Lens: mm / F Lux: 0.03 Resolution: TV lines Lens angle: diagonal 210° Viewing angle: horizontal 170° vertical 120° +5° Dust and water resistant: IP69K Connection: 4 pin acv system plug(m) Ø5.2mm Operating voltage: +3V DC Supply voltage: +12V / +24V DC > with voltage converter Current consumption: 100mA Operating temperature range: -20°C - 70°C Storage temperature: -40°C - 80°C Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm
Note: - acv cameras are suitable for continuous operation - Before installation > check the viewing angle and camera alignment at the installation location using a test monitor - Camera operating voltage: +3V - Camera supply voltage: +12V / +24V - Connection without the +3V voltage converter included in delivery will damage the camera - Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND - Cinch(m) yellow: video

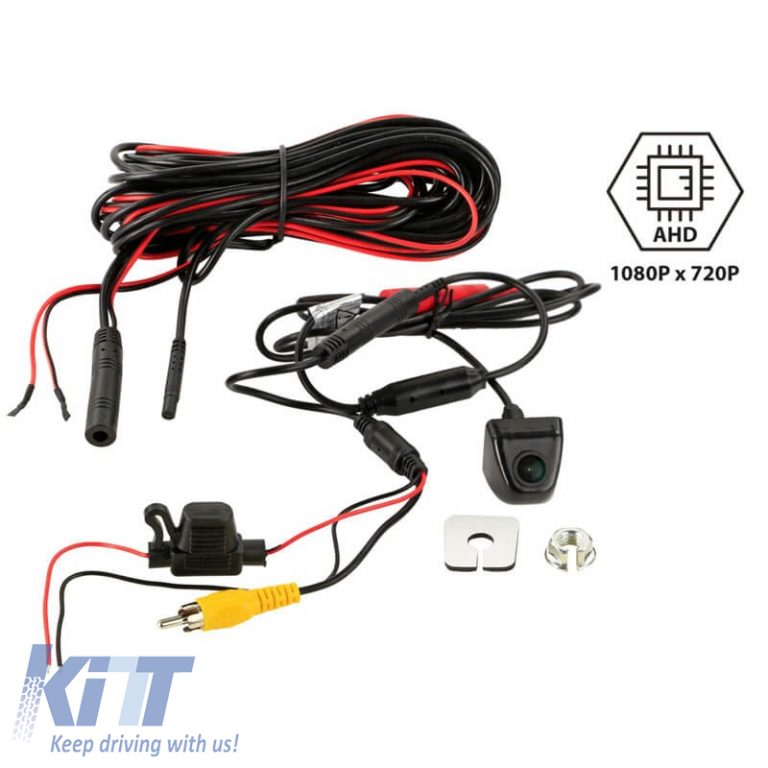

Product Info Color: Black Including: Double Side Tape Including: Wiring Kit Number of Pieces: 1 Piece Position: Rear Universal | Universal | Universal Image system: NTSC color Lens: mm / F Lux: 0.03 Resolution: TV lines Lens angle: diagonal 210° Viewing angle: horizontal 170° vertical 120° +5° Dust and water resistant: IP69K Connection: 4 pin acv system plug(m) Ø5.2mm Operating voltage: +3V DC Supply voltage: +12V / +24V DC > with voltage converter Current consumption: 100mA Operating temperature range: -20°C - 70°C Storage temperature: -40°C - 80°C Dimensions: L / W / H / 25.7mm / 28mm / 23.5mm
Note: - acv cameras are suitable for continuous operation - Before installation > check the viewing angle and camera alignment at the installation location using a test monitor - Camera operating voltage: +3V - Camera supply voltage: +12V / +24V - Connection without the +3V voltage converter included in delivery will damage the camera - Connection: red: +12V / +24V switched, load-stable, black: body ground direct/GND - Cinch(m) yellow: video
Product Info Color: Black Including: Double Side Tape Including: Wiring Kit Number of Pieces: 1 Piece Position: Rear Universal | Universal | Universal">
